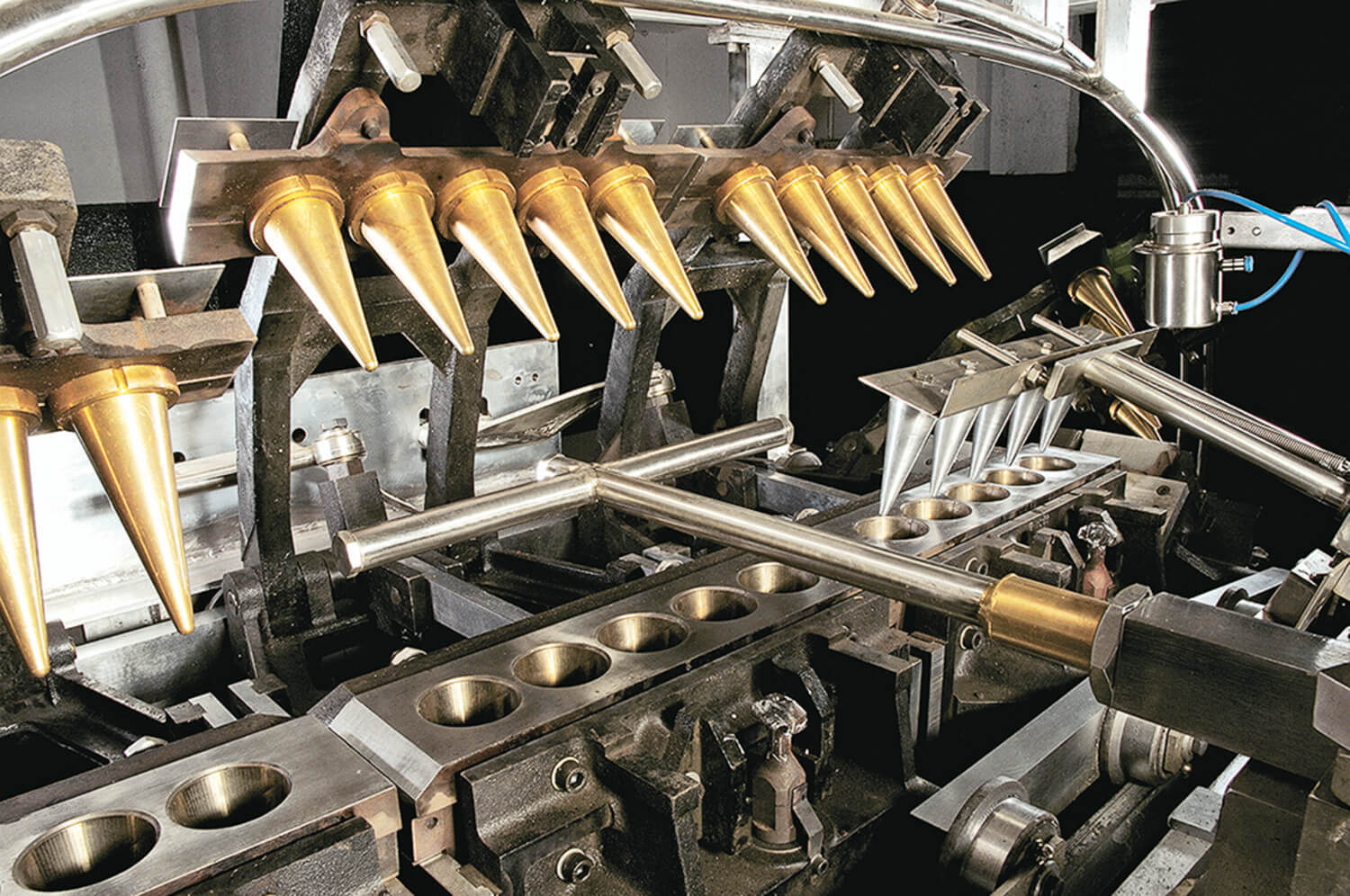

Our ACG series of automatic baking ovens are designed for the production of moulded cones cups and special products .Supplied in a plate configuration of 12-60 plates. these machines are capable of catering to various production requirements. The baking conveyor is driven by apowerful geared motor with a attachment of Variable speed drive hence the conveyor speed can be adjustable between 1.5-3 minutes (approx)
Enquire NowOur machines produces a variety of cones, wafers, edible cups or containers as per requirements. Newly developed machine systems enable us to offer optimum result even with challenging products that demand perfect baking parameters. At the same time our machines are designed to be energy efficient too
| DIMENSIONS (WITHOUT AUTOMATIC STACKING DEVICE) | ACG12 | ACG18 | ACG24 | ACG30 | ACG36 | ACG48 | ACG60 |
| Length in mm | 3500 | 4300 | 5500 | 6700 | 7600 | 9000 | 11500 |
| Width in mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Height in mm | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Net Weight in Kgs | 4000 | 5800 | 7000 | 8200 | 9400 | 10000 | 13000 |
| Weight with Seaworthy Packing | 4250 | 5250 | 6500 | 7750 | 9000 | 10500 | 12000 |
| LPG Gas Consumption | |||||||
| Kg/hr approx. | 6 | 8 | 10 | 12 | 14 | 18 | 22 |
| DIAMETER OF | ACG12 | ACG18 | ACG24 | ACG30 | ACG36 | ACG48 | ACG60 |
| Upto 29mm (11 cones/mould) | 5250 | 7900 | 10500 | 13200 | 15800 | 21000 | 26400 |
| Upto 32mm (10 cones/mould) | 4800 | 7200 | 9600 | 12000 | 14400 | 19200 | 24000 |
| Upto 36mm (09 cones/mould | 4300 | 6500 | 8600 | 10800 | 13000 | 17200 | 21600 |
| Upto 41mm (08 cones/mould) | 3850 | 5800 | 7700 | 9600 | 11600 | 15400 | 19200 |
| Upto 47mm (07 cones/mould) | 3350 | 5000 | 6700 | 8400 | 10000 | 13400 | 16800 |
| Upto 56mm (06 cones/mould) | 2850 | 4300 | 5700 | 7200 | 8600 | 11400 | 14400 |
| Upto 68mm (06 cones/mould) | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 12000 |
* Based on 90 sec baking time
